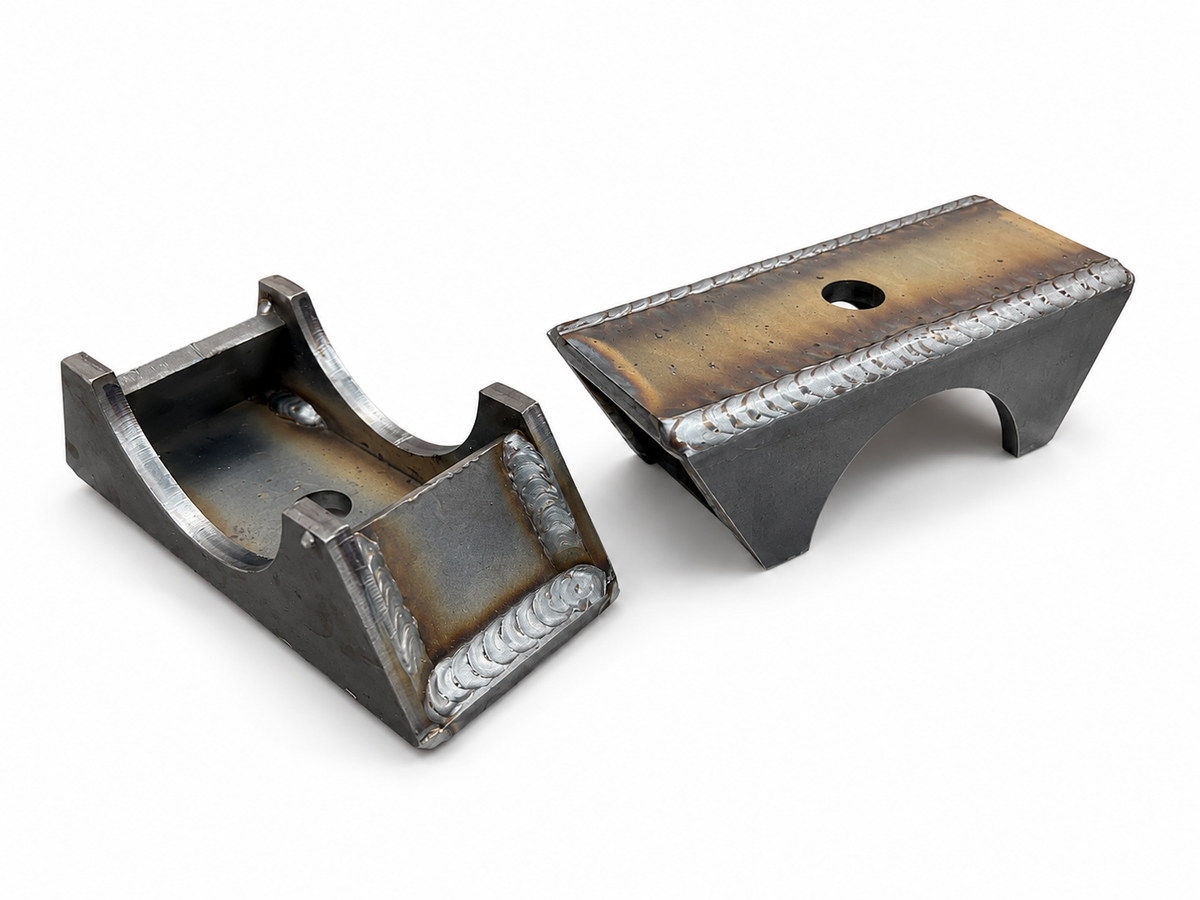

Axle Flip Perches (1999-2006) Silverado & Sierra GM 10 Bolt axle

GM 10-Bolt Axle Flip Perch Kit

Fits: All GM 10-Bolt Leaf Spring Trucks

The cleanest way to flip your GM 10-bolt and do it right.

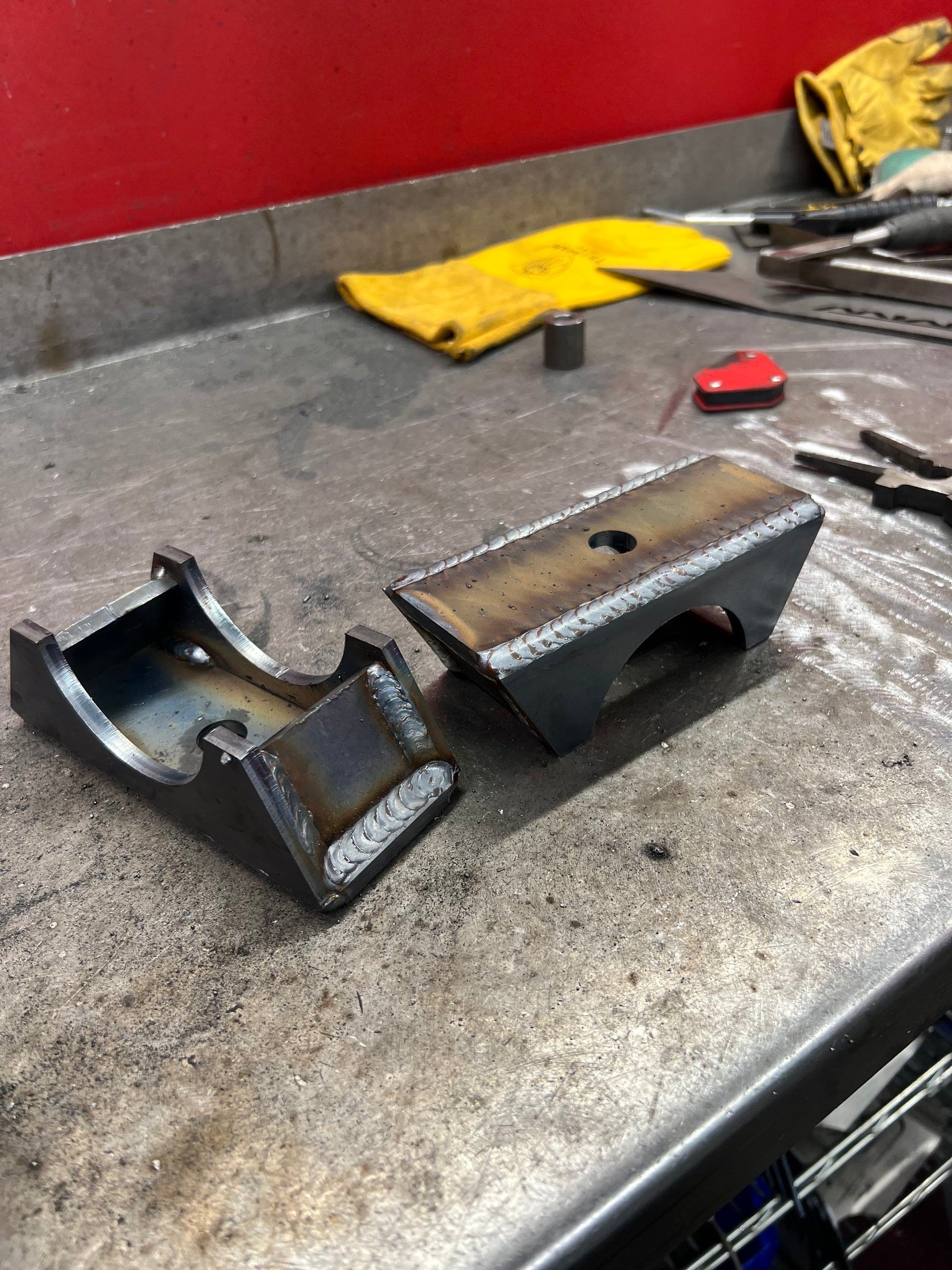

This CNC press brake-formed perch kit is built from 1/4” steel and professionally MIG welded — designed to sit under the axle tube and let you dial in your pinion angle before you weld it solid.

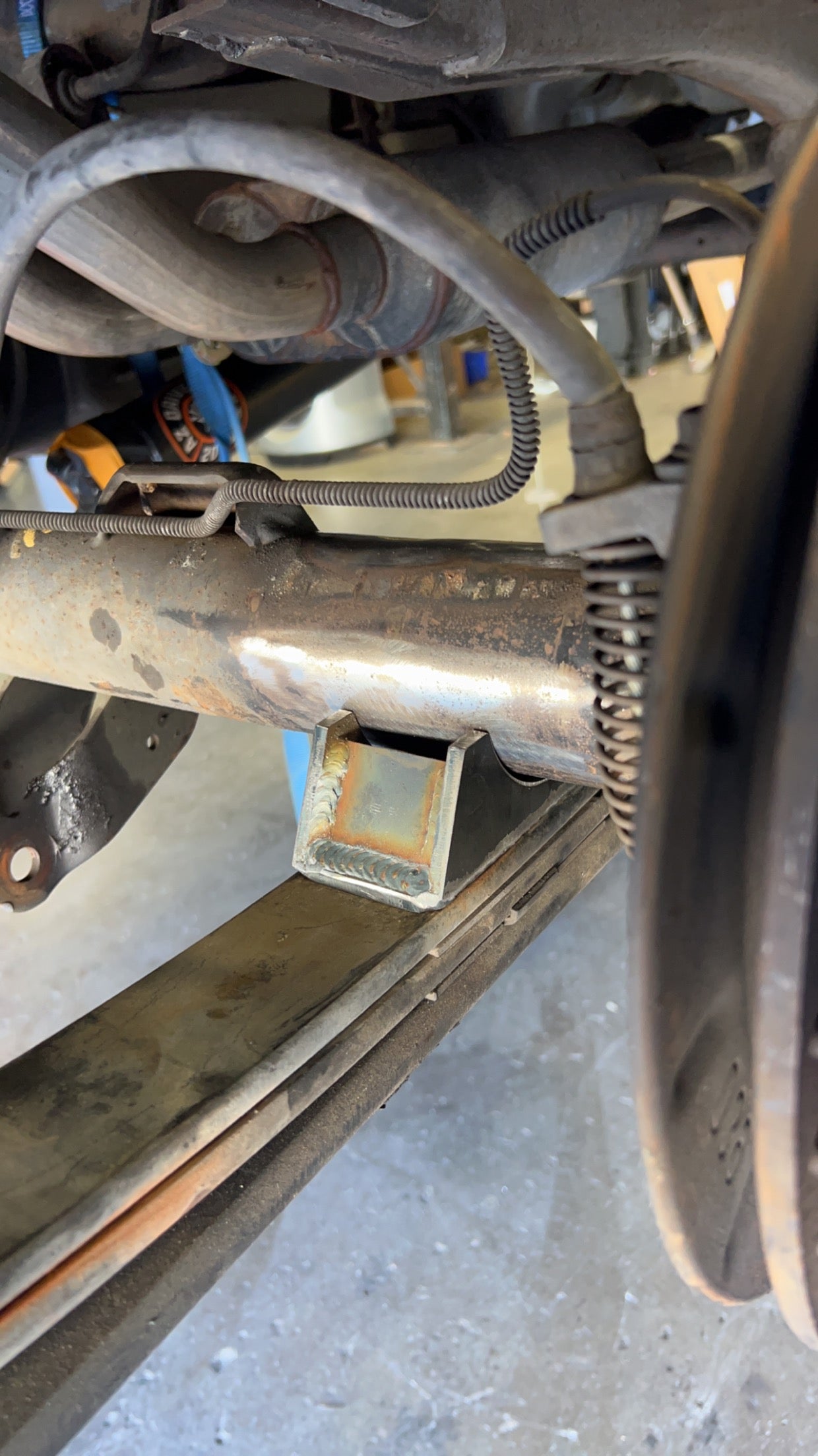

No guessing, no hacking up factory perches. Flip the axle on top of the leaf springs, drop this perch underneath, set your pinion angle, and burn it in.

Kit Features:
∙ Formed from 1/4” steel plate
∙ CNC press brake bent for consistency
∙ Professionally MIG welded
∙ Compatible with all GM 10-bolt leaf spring rear axles
∙ Full pinion angle adjustment before final weld

What’s Included:
∙ (2) Axle flip perches — driver and passenger side

Installation Notes:
∙ Axle must be flipped on top of leaf springs prior to install
∙ Use U-bolts sized to your axle tube diameter
∙ Before welding, set the truck at ride height and verify pinion angle is parallel to your driveshaft — this is the step most people rush and regret
∙ Weld perch solid to axle tube only after pinion angle is confirmed
∙ Professional installation recommended if you’re unfamiliar with pinion angle setup

Legal & Safety Disclaimer:
This product modifies your vehicle’s rear suspension geometry. By purchasing, you accept full responsibility for correct installation, use, and legal compliance in your area. Desert Style Manufacturing LLC is not liable for misuse or improper installation.
